Sulzer is a global leader in fluid engineering. Sulzer specialise in pumping, agitation, mixing, separation and application technologies for fluids of all types. Sulzer customers benefit from their commitment to innovation, performance and quality and from a responsive network of 50 world-class manufacturing facilities and 100 service centers across the globe.

Operational Excellence: continually striving to be faster and better

Customer partnership: Benefits to everyone

Committed people: Building on the strengths and diversity of their people

Close to 15,000 employees worldwide

180 Production and Service facilities worldwide

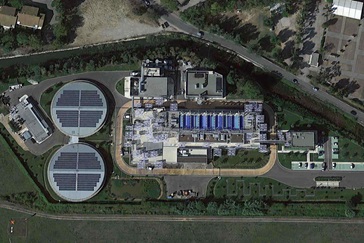

The Aquaviva wastewater treatment plant receives effluents from eight cities around Cannes, averaging almost 16 million m³ of treated wastewater annually. It has a capacity of 300’000 population equivalents. The level of treatment is higher than the European standards require, because after the biological treatment, the separation of biological sludge is provided by a membrane technique instead of a traditional settling technique. The treated water is discharged into the sea at a depth of 85 meters and at a distance of more than 1’200 meters from swimming areas.
The construction and operation of the Aquaviva station was mandated by the Syndicat Intercommunal d’Assainissement Unifié du Bassin Cannois (SIAUBC) to Suez for a period of 20 years (2009-2028). Since March 25, 2012 Aquaviva has now treated the wastewater of eight towns in the catchment area: Auribeau-sur-Siagne, Cannes, Le Cannet, Mandelieu-La-Napoule, Mougins, Pégomas, La Roquette-sur-Siagne, and Théoule-sur-Mer.

Drainage Pumps

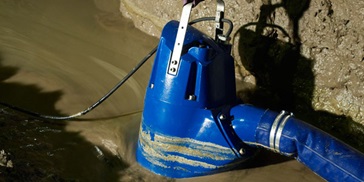

Submersible drainage pumps J and XJ are excellent for pumping water and dirty water mixed with light abrasives. The pump design enables convenient transport, handling and installation. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear.

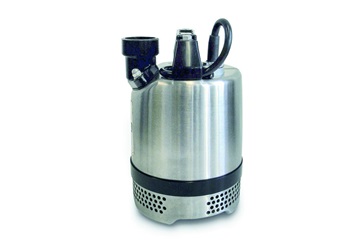

Submersible Drainage Pump J5 Series

The submersible drainage pump J5 is suitable for pumping water and dirty water mixed with light abrasives. When delivered to a site you can start using them right away. The low weight and compact design ensure convenient transport, handling, and installation. Head max 11 meters, flow max 4 l/s.

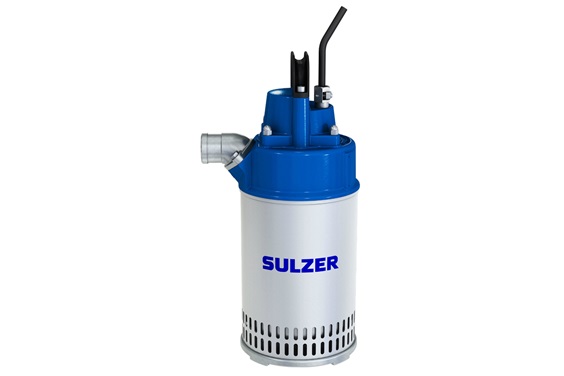

Submersible drainage pump J 12

The low weight and compact design of the submersible drainage pump J 12 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 15 meters, flow max 9 l/s. 60 Hz: head max 18.5 meters (61 feet), flow max 8.5 l/s (135 gpm).

Submersible drainage pump J 15

The low weight and compact design of the submersible drainage pump J 15 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 19 meters, flow max 12 l/s. 60 Hz: head max 23 meters (74 feet), flow max 10.5 l/s (166 gpm).

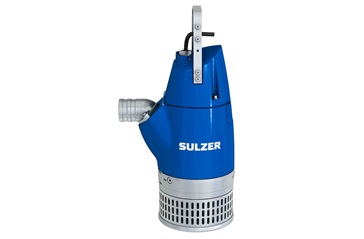

Submersible drainage pump XJ 25

The submersible drainage pump XJ 25 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 26 meters, flow max 19 l/s. 60 Hz: head max 30 meters (98 feet), flow max 20 l/s (317 gpm).

Submersible drainage pump XJ 40

The submersible drainage pump XJ 40 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 34 meters, flow max 23 l/s. 60 Hz: head max 36 meters (118 feet), flow max 22 l/s (349 gpm).

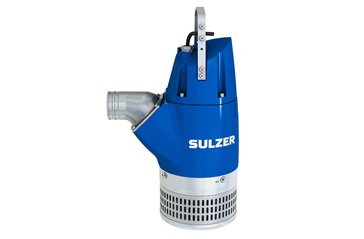

Submersible drainage pump XJ 50

The submersible drainage pump XJ 50 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 45 meters, flow max 35 l/s. 60 Hz: head max 49 meters (161 feet), flow max 36 l/s (571 gpm).

Submersible drainage pump XJ 80

The submersible drainage pump XJ 80 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 76 meters, flow max 52 l/s. 60 Hz: head max 94 meters (308 feet), flow max 37 l/s (587 gpm).

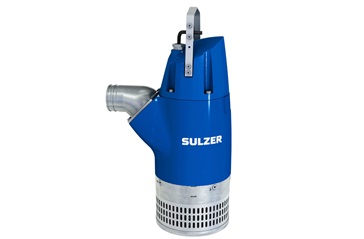

Submersible drainage pump XJ 110

The submersible drainage pump XJ 110 is ideal for pumping water and dirty water mixed with light abrasives. Pumps with built in AquaTronic unit will always have correct direction of impeller rotation, ensuring peak performance and reduced wear. 50 Hz: head max 52 meters, flow max 54 l/s. 60 Hz: head max 63 meters (207 feet), flow max 55 l/s (873 gpm).

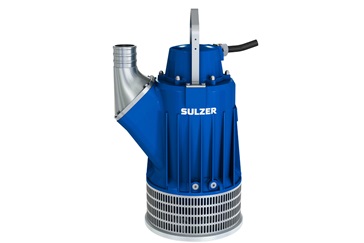

Submersible drainage pump J 205

The low weight and compact design of the submersible drainage pump J 205 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 72 meters, flow max 102 l/s. 60 Hz: head max 85.5 meters (280 feet), flow max 106 l/s (1683 gpm).

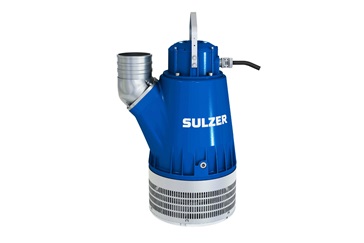

Submersible drainage pump J 405

The low weight and compact design of the submersible drainage pump J 405 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 90 meters, flow max 160 l/s. 60 Hz: head max 101 meters (331 feet), flow max 160 l/s (2540 gpm).

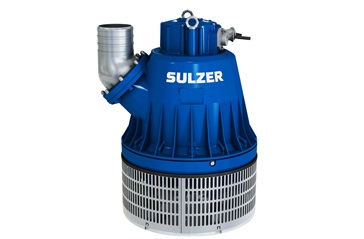

Submersible drainage pump J 604

The low weight and compact design of the submersible drainage pump J 604 ensure convenient transport, handling, and installation. The pump is ideal for pumping water and dirty water mixed with light abrasives. 50 Hz: head max 58 meters, flow max 330 l/s. 60 Hz: head max 70 meters (230 feet), flow max 340 l/s (5397 gpm).

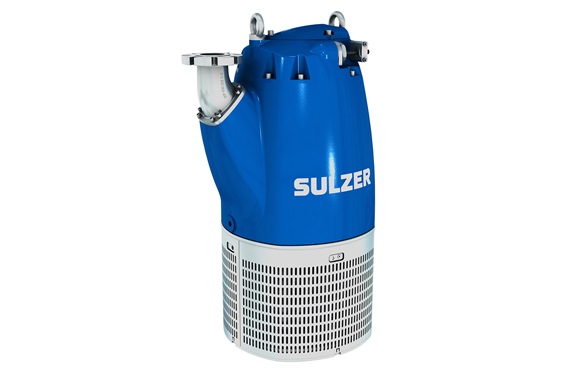

Submersible drainage pump XJ 900

The innovative design allows this high-efficiency pump to be used both in high-head and high-flow applications. 50 Hz: head max 200 meters, flow max 120 l/s. 60 Hz: head max 230 meters (754 feet), flow max 130 l/s (2’090 gpm).

Submersible Pumps

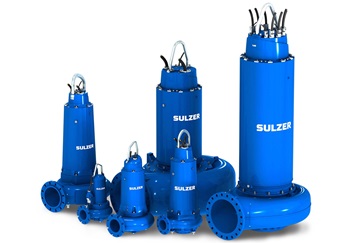

Submersible sewage pump type ABS XFP

Submersible sewage pumps type ABS XFP are the best choice for ensuring efficient and reliable pumping in any wastewater pumping station. The submersible wastewater pumps, mainly installed in network pumping stations, are equipped with Premium Efficiency IE3 motors as standard and with the Contrablock Plus impellers. They are designed to process today’s wastewater mainly composed of less water due to low-flush toilets and a range of sanitary items such as wipes, fibre material, etc.

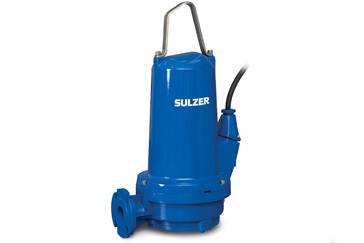

Submersible grinder pump type ABS Piranha

Piranha sewage pumps with shredding action provide reliable and economical discharge of effluent under pressure. Used in high pressure sewage systems, they offer an economical alternative where the terrain doesn’t permit the use of gravity sewers.

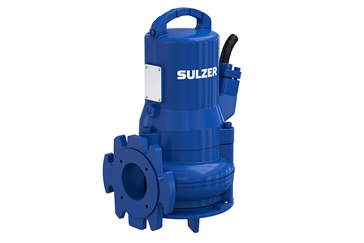

Submersible wastewater pump type ABS AS

The AS range are robust, reliable submersible pumps from 1 to 3 kW for pumping wastewater and sewage from buildings and sites. The pumps have water pressure-tight, encapsulated, fully flood-proof motors in standard and explosion-proof versions.

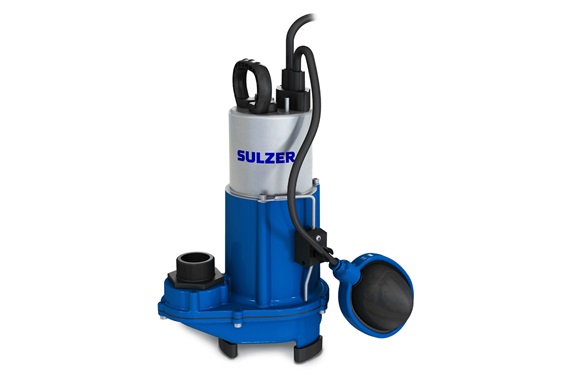

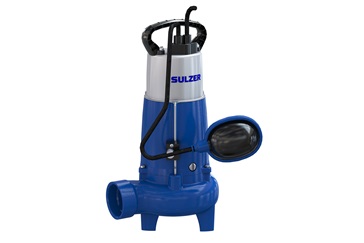

Light wastewater pump type ABS MF 154-804

The MF 154-804 is a compact submersible pump range for reliable and effective drainage. Designed to fit small sump requirements, to enable quick and cost effective installations.

Light wastewater pump type ABS MF 154HW

The MF 154HW is a compact submersible hot water pump for the removal of domestic and commercial high temperature wastewater. The pump is equipped with vortex hydraulics for blockage-free pumping in applications where the temperature of the medium exceeds the standard upper limit (40 °C) to a maximum allowable temperature of 80 °C.

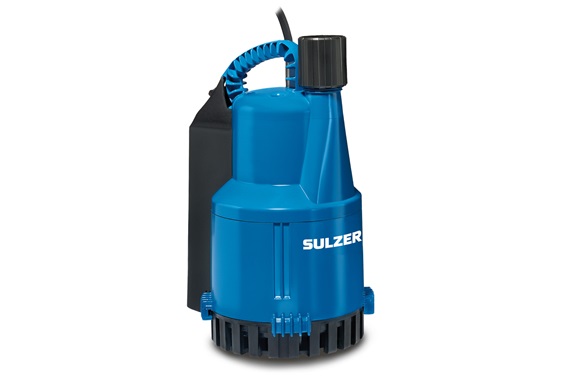

Light drainage pump type ABS Robusta

The Robusta 200 and 300 models are plug-in, submersible pumps designed to remove wastewater containing solids up to 10 mm. The pump and motor form a pressure-tight encapsulated fully flood-proof unit.

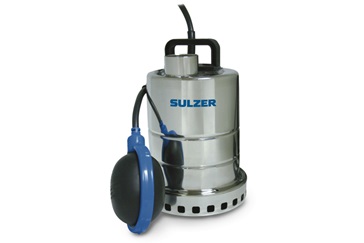

Light drainage pump type ABS Coronada

The Coronada is a plug-in, stainless steel submersible pump designed to remove wastewater containing solids up to 10 mm. This fully flood-proof, pressure-tight encapsulated unit runs continously until all water is gone.

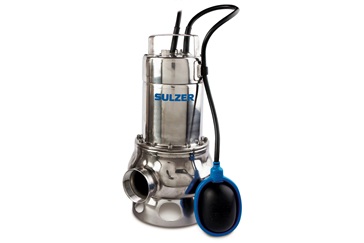

Light drainage pump type ABS IP

The IP is a pressure-tight encapsulated unit made of high-grade stainless steel and suitable for aggressive media.
